Simon Telephonics¶

The following configuration is based on the example found here

username: GV18005551212
password: password
exten: 18005551212
host: gvgw.simonics.com

General SIP configuration¶

Under Services ‣ IPBX ‣ General settings ‣ SIP Protocol.

General
- Match users with ‘username’ field: checked

../../_images/simonics_sip_general.png

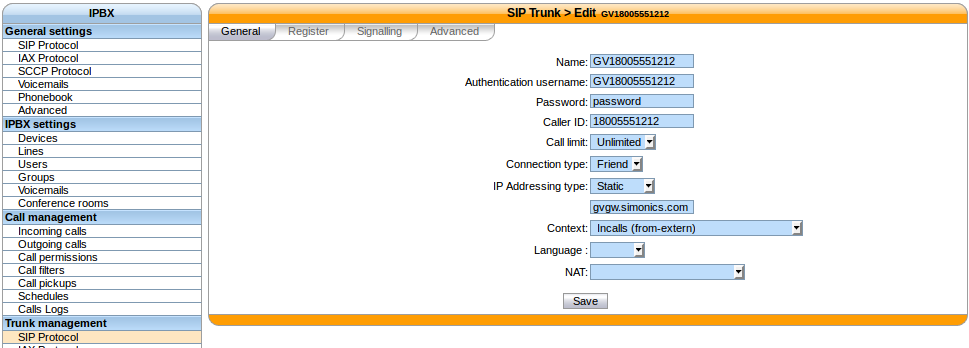

Trunk settings¶

Under Services ‣ IPBX ‣ Trunk management ‣ SIP Protocol.

General
- Name: GV18005551212
- Authentication username: GV18005551212
- Password: password
- Caller ID: 18005551212
- Connection type: Friend
- IP Addressing type: static
  - gvgw.simonics.com
- Context: <your incoming call context>

../../_images/simonics_trunk_general.png

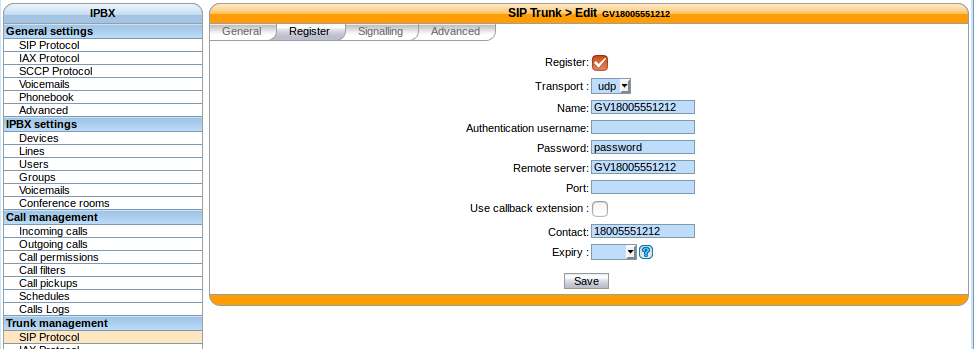

Register
- Register: checked
- Transport: UDP
- Name: GV18005551212
- Password: password
- Remote Server: GV18005551212
- Contact: 18005551212

../../_images/simonics_trunk_register.png

Signaling
- Monitoring: Yes

../../_images/simonics_trunk_signaling.png

Outgoing calls¶

See the Set the outgoing calls section.

Incoming calls¶

See the Set the incoming calls section.
